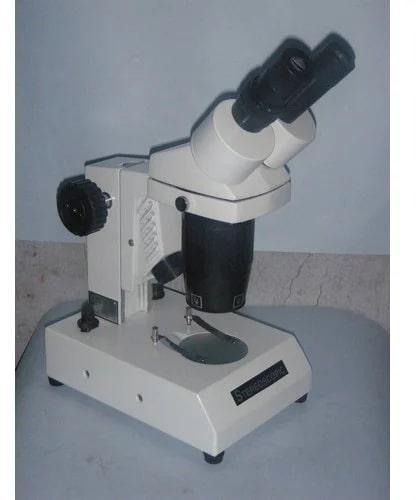

Leading Manufacturers and Wholesaler of Advanced Microscope, Binocular Research Microscope, Coaxial Microscope, Mechanical Microscope, Pathological Research Microscope, Projection Microscope, Stereo Microscope, Student Compound Microscope and Trinocular Microscope from Ambala.
Body: Well designed die-casted body staple grey & black contrast with hard instrumental chromium finish.
Observation Head: Special quality Binocular observation head inclined at 450 & rotatble through 3600. All prism & optical surface are anti reflection coated. Standard interpupillary distance & diopter adjustment provided.
Nose Piece: Dust proff quadruple nose piece with clik for perfect optical alignment.
Stage: Fixed stage 140mm x 120mm with built in co-axial mechanical stage for easy and smoth bearing.
Condenser: Double lens bright field Abbe’s condenser N.A. 1.25 with iris diaphragm movable by rack & pinion.
Illumination: By halogen lamp 6v 20walts operated through built in solid state transformer with electronic regulator.
Safety Stopper: Prevent damage to slides and objectives.
Optics: High class anti reflection coated self centres & parafocal achromatic objectives & superior quality eye pieces.
Packing: In dust proff thermocole box housed in 12,, thick beautiful storing cabinet with summica door.
The Co-Axial Microscope manufactured by our company is made from top quality material and is based on latest technology. Our co-axial microscope is used widely in laboratories, institutes, research centers etc. because of its excellent performance. Our company has become one of the top ranking manufacturers of Co-Axial microscopes.
Technical Specifications :
Binocular Head, inclined at 45 degrees and rotating
Widefield WF10X/18mm Eyepiece
Plan Objective 4X
Achromatic Objectives 10X, 40X(S), 100X(S, Oil)
Coaxial Coarse and Fine Focusing with Tension Adjustment
Low position coaxial mechanical stage
Rack & Pinion focusable 1.25NA Condenser
Halogen Illumination 6V/20W with intensity control
Pathological Microscope having coarse focusing rack & pinion and sensitive fine graduated slow motion reading to .002mm.
Sub Stage ABBE Condenser(N.A. 1.25) is moveable on rack & pinion motion and has an iris diaphragm and swing out filter holder. Fitted with quadruple revolving nose piece and fixed stage size 120x120mm with precision mechanical stage for xandy movement of slide with slide safety stopper.
Microscope is Inclinable thorough 900 with mechanical tube length 160mm.
Illumination by plano concave mirror 50mm dia in metallic fork replaceable by sub stage pin type lamp 220V/15W(optional).
Square stage 120x120mm with detachable mechanical stage for x and y movement. Double lens ABBE Condenser(N.A. 1.25) with iris diaphragm, having swing out filter holder movable by rack & pinion.
